UP Box + 3D Printer Specifications
|
Build size
|
255 mm width, 205 mm depth, 205 mm height
|
|
Build platform
|
Heated print bed with easy to remove platform
|
|
Smart Support
|
Intelligent Smart Support material, printed in the same material, printed at a lower density and built automatically by the included 3D print software
|
|
Selectable layer resolution
|
0.1 mm (100 micron), 0.15 mm 0.2 mm, 0.25 mm, 0.3 mm, 0.4 mm - That's a ultra fine HD detail of 100 microns!
|
|
Platform Levelling
|
Fully automatic levelling with integrated levelling probe - no human interaction required
|
|
Platform Height
|
Fully automatic height sensor - no human interaction required
|
|
Average noise
|
51.7 dB - as quiet as your fridge
|
|

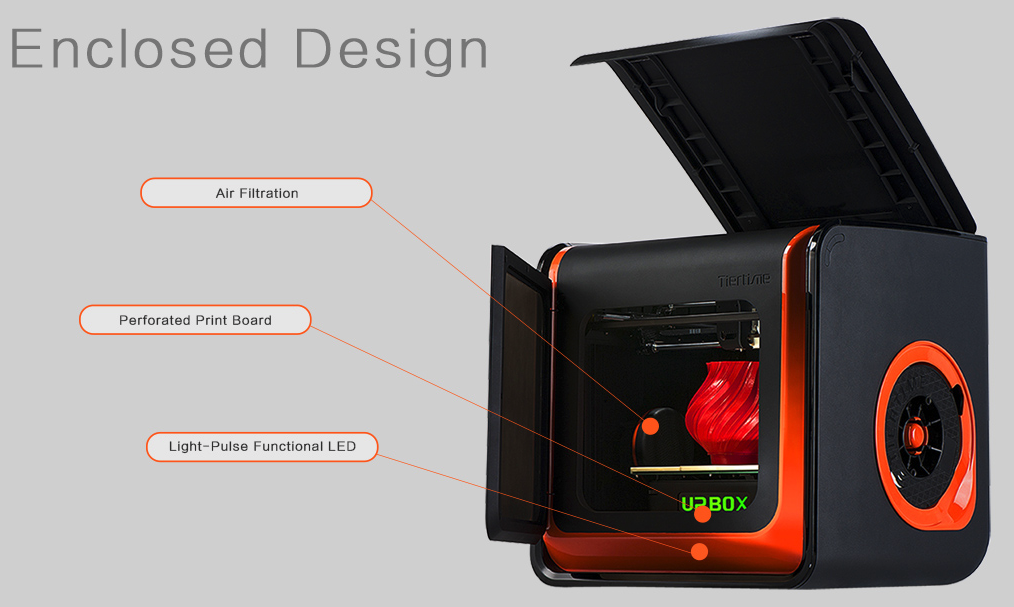

Air filtration
|
Inbuilt HEPA filter - removes micro fine particles and 3d printing fumes
|
|
Lighting
|
Active heart beat mood lighting, provide visual feedback of the print status
|
|
Dimension
|
485 mm width, 520 mm depth, 495 mm height
|
|
Weight
|
20 kg
|
|
Shipping Weight
|
TBA kg
|
|
Power input
|
110-220VAC, 50-60Hz, 220W
|
|
Connectivity
|
USB (Print job stored and spooled to Printer, ability to turn off computer during printing.)
|
|
Consumables
|
1.75mm ABS Plastic Filament and PLA which is ideal for lost wax or investment casting
|
|
Warranty
|
12 month return to base
|
|
Software
|
STL 3D layout and printing software included free: Windows (XP,Vista,7,8) 32/64 bit and MAC OSX 10.7 Beta
|
|
Unboxing time to print
|
15 minutes
|
Terms and Conditions:
Errors and omissions excempted.Limit one per customer or while stocks last
. Approximate delivery early 1st Quarter 2015. Before delivery we will notify you to request balance payment.
Background on 3D Printing
- Build platform: 255mm width, 205mm depth, 205mm height.
- Prints 30% faster than UP Series II
- 0.1 mm (100 micron), 0.15 mm 0.2 mm, 0.25 mm, 0.3 mm, 0.4 mm - That's a ultra fine HD detail of 100 microns!
- Raftless printing: Yes
- Support Material: Smart Supports. Intelligent snap off support material, printed in the same material, printed at a lower density and built automatically by the included 3D print software.
- Dimension: 485 mm width, 520 mm depth, 495 mm height
- Weight: 20kg
- Shipping Weight: TBA kg
- Power input: 110-220VAC, 50-60Hz, 220W
- Power output: 20 VDC 11amp
- Connectivity: Wireless / USB (Print job stored and spooled to Printer, ability to turn off computer during printing.)
- Consumables: 1.75mm ABS Plastic Filament and PLA which is ideal for lost wax or investment casting
- Warranty: 12 month return to base.
- Software: STL 3D layout and printing software included free for Windows and MAC 10.7 Beta
- Operating System: Windows XP, Vista, Windows 7, OSX 10.7 beta
- Unboxing time to print: 15 minutes
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Details
- Easy out-of-box setup and use
- Simple to install 3D Software
- Uses inexpensive ABS, PLA, Nylon & Polycarbonate plastic filament - adjustable melt temp.
- Fully automatic levelling and height with integrated levelling probe - no human interaction required
|
|
|
|
|
|
|
