EinScan-PRO+ 3D Hand held Scanner
EinScan-PRO 3D Hand held Scanner



RRP $7,810.00 Inc GST
Basic Scanner: inc GST $7,790.00 Inc GST
You save $20.00!


Availability:
:
Usually Ships in 2 to 3 Business Days
Product Code: EINSCAN2



EinScan PRO Options*:


Qty:
Description Specifications Extended Information


EinScan-PRO+ 3D Hand Held Scanner


FREE SOLID EDGE OEM - 3D DESIGN & DRAFTING software included

with Reverse Engineering software to convert high polygon count software.


The EinScan-Pro+ now includes Siemens - SolidEDGE ST10 Node locked perpetual license software for Windows worth over A$8,500+ for free with each Scanner.


With Einscan PRO+ it is easy to scan directly to SolidEDGE ST 10 OEM delivered as a FREE download and run as a node locked perpetual OEM license.

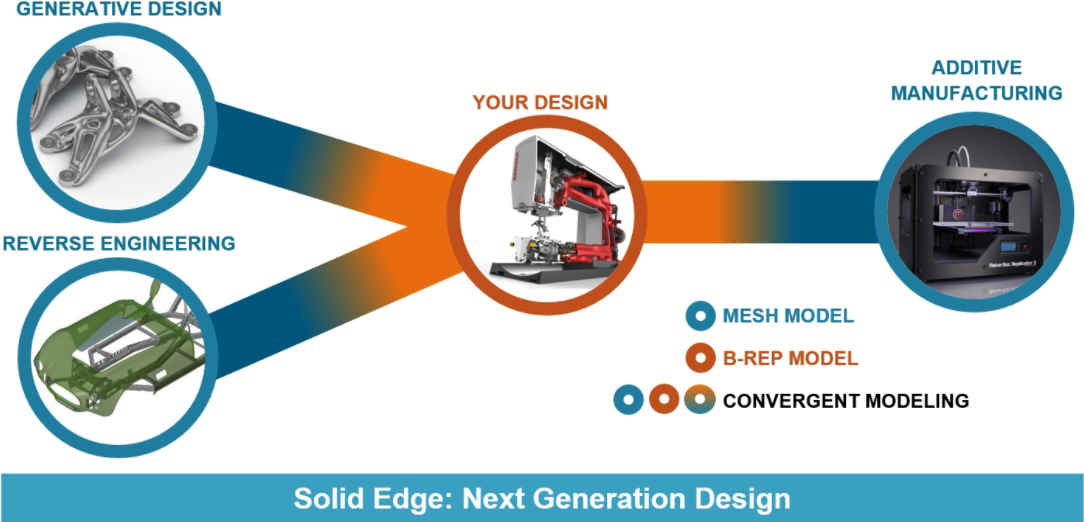

Advanced 3D CAD for creating complete digital prototypes

Solid Edge ST10 OEM Node Locked is a hybrid 2D/3D CAD system that uses synchronous technology for accelerated design, faster change, and improved imported reuse. Rapid Blue, a series of unique capabilities for robust complex shape creation, is the user interface that makes Solid Edge the easiest to adopt of all mechanical CAD products.
Cloud-enabled Design on Your Terms
Cloud capabilities when you need them. Flexible and easy access to the full capabilities of Solid Edge with cloud-based licensing, user preferences and software updates. Collaborate easily using popular cloud based file sharing software. Flexibility to work offline when needed.
Fast and Flexible 3D Modeling
Get industry-leading part and assembly modeling tools, and remove the constraints of traditional CAD with synchronous technology. Designing the world's best products has never been faster or more intuitive.
  • Enhanced Assembly Management
  • Synchronous Technology
  • Enhanced Drawings
  • Catchbook and Solid Edge
Scalable Data Management
Enjoy built-in data management with instant searches, easy revision and release management, and optional cloud based vaulting. Get up and running in as little as an hour, and have the flexibility to grow to full PLM capabilities with Teamcenter.
  • Built-in Data Management
  • Teamcenter Integration
Move to Solid Edge!
With the industry's best data migration tools and most flexible purchasing and licensing options, it's never been easier to move to Solid Edge. So whether you're an established business, a startup, a maker, or a student, now's the time to try Solid Edge.
  • SolidWorks Drawing Migration
  • Advanced Modeling Enhancements

Features

  • Fully integrated design management with Insight, using standard Windows technology
  • Embedded assembly and BOM management, revisioning, release processes, and collaboration tools
  • Process specific workflows for sheet metal, frames, plastic and cast parts
  • Process specific workflows for sheet metal, frames, plastic and cast parts
  • Assembly tools that make it practical to work with large assemblies
  • Advanced tools for 2D drawing creation, including workflows to transition smoothly from 2D to 3D, detailing and automatic dimensioning controls that comply with ISO, ANSI, BSI, UNI, DIN, ESKD and JIS
  • Translators for: DWG, DXF, DGN, SAT, IGES, STEP, SLDPRT (3D), NX, EMS, MDS, STL and XML
  • Data migration tools for Pro-E, Inventor, I-DEAS and Mechanical Desk Top where a donor system license exists.
The EinScan PRO+ carries on the consistent excellent scanning quality of the EinScan-Pro but from May also adds the option of being able to scan Marker FREE with the addition of the HD Scan camera and ew software. It provides multiple scanning modes and delivers simple and fast scanning with its convenient handheld design. The new EinScan-Pro+, offers a brighter and more fashionable champagne-gold color. Although similar in appearance to the EinScan-Pro, it is full of new innovations:

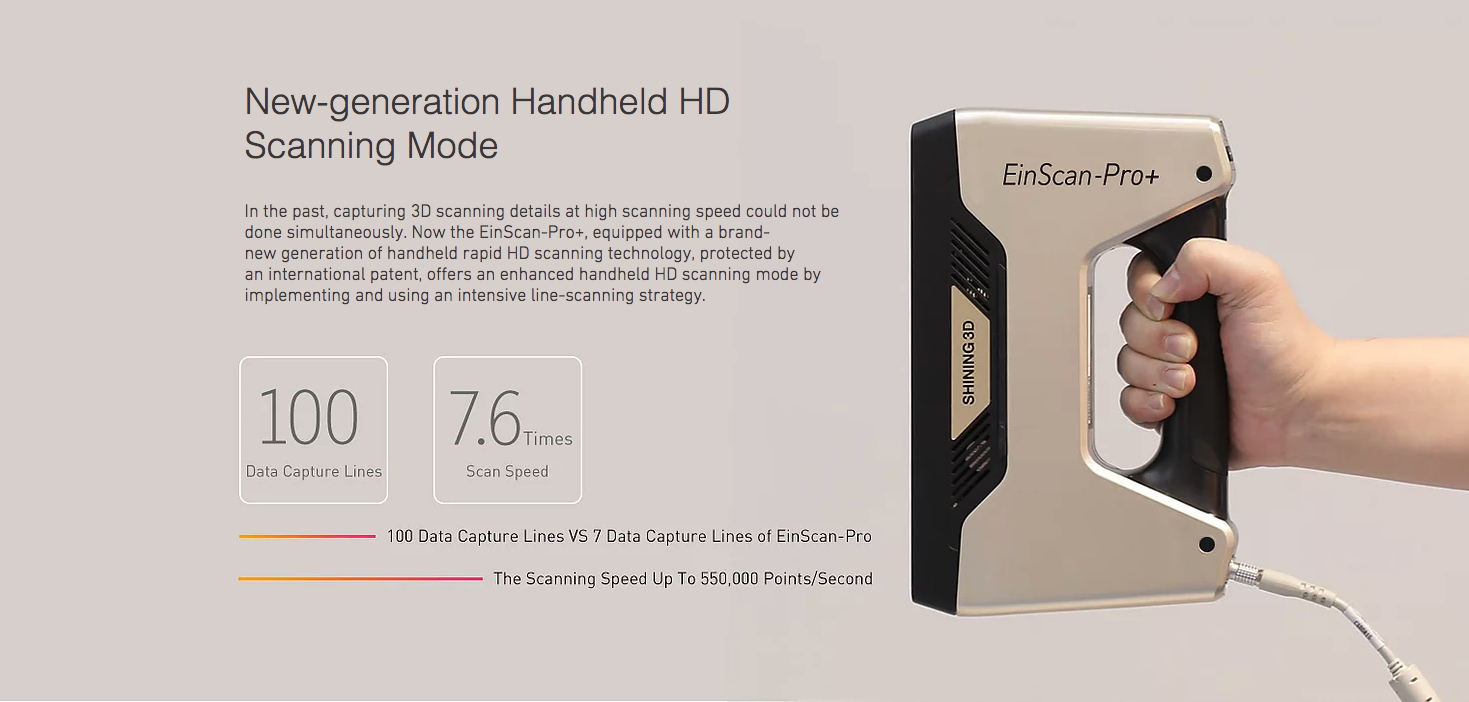

  • Handheld high definition scanning mode (Handheld HD Scan) adopts a new international proprietary technology, achieving a perfect combination of 3D scanning speed and acquisition details.
  • The range of single-frame scanning has been enlarged 1.6 times, to offer a comprehensive improvement in the scanning speed, in handheld scanning mode.
  • EinScan-Pro+ offers an enhanced handheld HD scanning mode by implementing and using an intensive line-scanning strategy. The original 7 data capture lines have been increased to 100 lines. The scanning speed under the handheld HD mode has been increased to 550,000 points/second.

Select your options

EINSCAN-PRO choice with basic or complete set of Options :


  • Select 1. Basic Hand Held unit. No Colour unit - but all the resolution for basic hand scans
  • Select 2. Basic Hand Held unit with Colour unit - for additional full colour details for texture maps.
  • Select 3. Industrial Hand Held unit with Auto Turntable and tripod - for automatic high speed scanning of items about 20cm dia.
  • Select 4. Industrial Hand Held unit with Colour unit & Auto Turntable - for colour & automatic high speed scanning of items about 20cm dia.
  • Select 5 HD PRIME Add on pack - Camera module


This unit is delivered free and comes with easy to set up instructions, calibration card and software for Windows 64 installation on customer supplied i5+ laptop/workstation with Nividia GTX 660+ graphics card.


Details

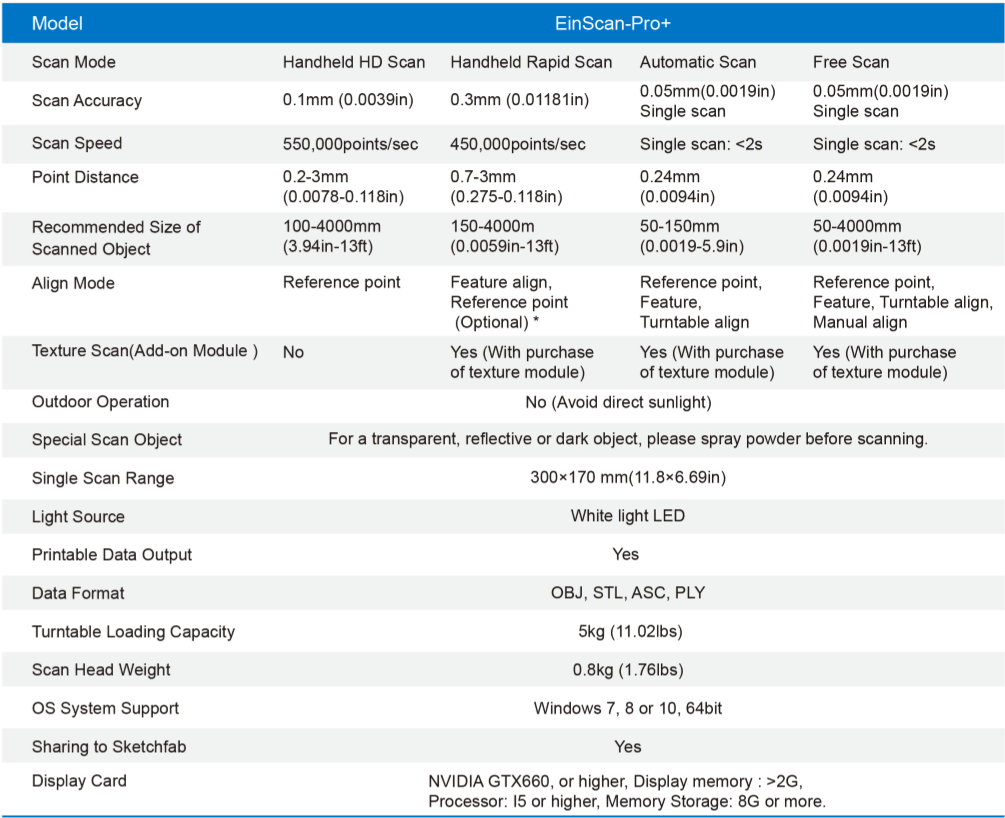

Four Scan Options Available

Either
Handheld rapid Scan
Handheld HD Scan
Automatic Scan ( with Industrial pack option )
Free Scan
